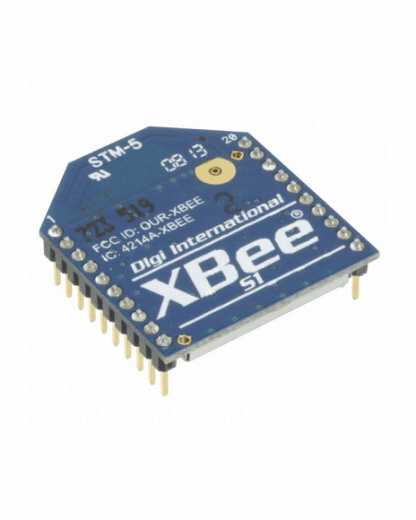

Xbee S1 IC-4214A

The XBee S1 is a wireless communication module based on the XBee/802.15.4 platform, designed for low-power and short-range wireless communication applications. It is part of the XBee family of modules developed by Digi International, offering reliable and easy-to-use wireless communication solutions. The XBee S1 module is well-suited for applications that require reliable wireless communication over short to moderate distances. It is commonly used in scenarios where low power consumption and ease of integration are essential, such as home automation, industrial automation, and remote monitoring systems. Additionally, the XBee modules can be configured to create mesh networks, enabling robust and extended-range wireless communication. When using XBee S1 modules, be sure to consult the documentation and datasheet provided by the manufacturer for detailed configuration and usage guidelines.

Specifications:

• Wireless Technology: XBee S1 modules use the IEEE 802.15.4 standard for wireless communication.
• Operating Frequency: Typically operates in the 2.4 GHz ISM (Industrial, Scientific, and Medical) band.
• Communication Range: The range varies depending on environmental factors and power settings but typically ranges from 30 to 100 meters.
• Data Rate: Supports data rates up to 250 kbps.
• Antenna Options: Available with different antenna options, including wire antennas and chip antennas.
• Power Supply: Usually operates on low voltage, such as 3.3V.
• I/O Pins: Provides digital I/O pins that can be configured for various purposes.
• Serial Communication: Offers serial UART communication for interfacing with microcontrollers and other devices.
• Configuration: XBee modules are configured using AT commands, allowing for flexible and customizable operation.
• Sleep Modes: Supports sleep modes to conserve power when not actively transmitting or receiving data.
• Mesh Networking: XBee modules can be configured to operate in mesh networks for reliable and extended coverage.
• Encryption: Provides data encryption and security features to protect wireless communications.
• Application: Used in various applications, including home automation, industrial monitoring, remote sensing, and wireless sensor networks.
• Compatibility: Compatible with other XBee modules and can be used with microcontrollers and embedded systems.
