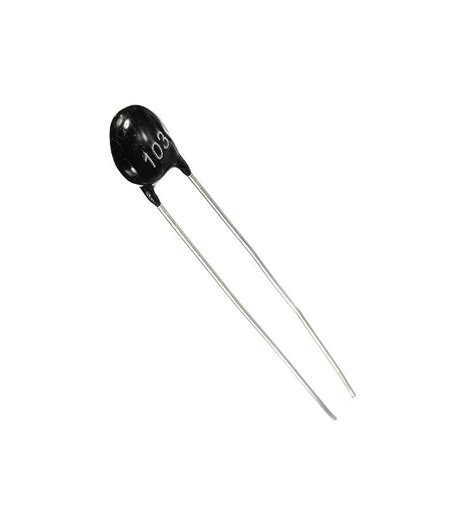

Thermistor 10k

A 10K Thermistor is a type of temperature sensor that uses the resistance of a ceramic thermistor to measure temperature changes. The term “10K” refers to the nominal resistance of the thermistor at a specific temperature, typically 25°C (77°F). As the temperature changes, the resistance of the thermistor also changes, allowing it to accurately measure temperature variations. These thermistors are widely used in applications like temperature sensing and control in various electronic devices. 10K thermistors are versatile and widely used temperature sensors in electronics due to their accuracy, small size, and compatibility with various temperature control and measurement systems. They are commonly found in applications such as home appliances, HVAC systems, industrial processes, and temperature-sensitive electronic devices. When using a 10K thermistor in your projects, it’s important to consult the datasheet and documentation to understand the specific characteristics of the thermistor and ensure accurate temperature measurements.

Specifications:

• Resistance at 25°C: The thermistor has a nominal resistance of 10,000 ohms (10K) at 25°C.
• Resistance-Temperature Relationship: The resistance of the thermistor changes with temperature, following a known resistance-temperature curve (often referred to as the thermistor’s resistance vs. temperature characteristic).
• NTC (Negative Temperature Coefficient): Most 10K thermistors are NTC thermistors, which means their resistance decreases as temperature increases.
• Temperature Range: The range over which the thermistor can accurately measure temperature varies but typically spans from -40°C to 125°C or more.
• Beta Value (B-Value): The Beta value is used to describe the resistance-temperature relationship and is often provided in the thermistor’s datasheet.
• Accuracy: The accuracy of temperature measurement depends on the specific thermistor model, but they are generally known for their precision.
• Mounting: They are available in various package types, including radial, axial, and surface-mount configurations.
• Application: Used in temperature measurement, thermal compensation, temperature control systems, and more.
• Response Time: Thermistors typically have a fast response time to temperature changes.
