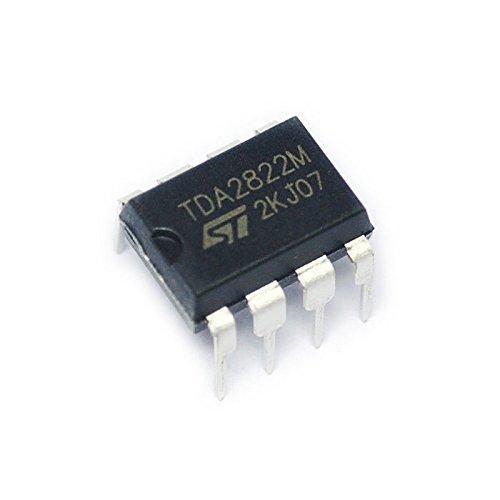

The TD2822 is a dual operational amplifier (op-amp) integrated circuit designed for amplification and signal processing in electronic circuits. It contains two separate op-amps within a single IC package, making it suitable for various audio and signal processing applications. The TD2822 dual op-amp IC is commonly used in audio amplifier circuits, headphone amplifiers, and various small-scale audio applications where dual-channel amplification or signal conditioning is required. Its compact package and ease of use make it suitable for a wide range of electronics projects.

Specifications:

• Operational Amplifier Type: Dual operational amplifier, containing two independent op-amps within the same IC package.
• Supply Voltage Range: Typically operates from a single power supply voltage ranging from 3 volts (V) to 15 volts (V), although specific models may vary.
• Input Offset Voltage: Low input offset voltage for precise signal amplification.
• Input Bias Current: Low input bias current to minimize current draw from input sources.
• Gain Bandwidth Product: Provides a moderate gain bandwidth product, suitable for audio amplification and signal processing.
• Slew Rate: Typically has a moderate slew rate for smooth signal processing.
• Package Type: Available in various surface-mount and through-hole packages, including DIP (Dual Inline Package) and SOP (Small Outline Package).
