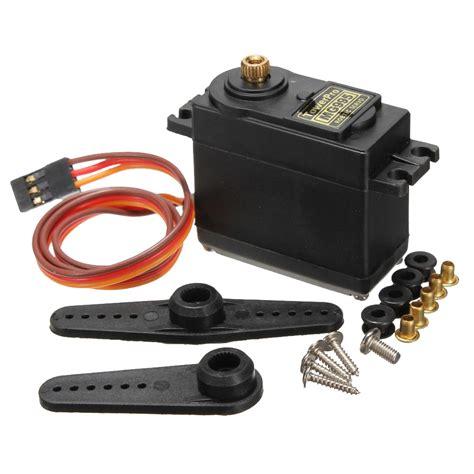

SERVO MOTOR MG995

The MG995 Servo Motor is a popular and widely used electromechanical device known for its precision and ability to provide accurate and controlled rotational movement. It is commonly used in robotics, remote-controlled vehicles, model airplanes, and other applications where precise and repeatable positioning is required. The MG995 servo motor is prized for its accuracy, high torque, and wide range of applications. It is a reliable choice for hobbyists, engineers, and makers working on projects that involve motion control and positioning.

Specifications:

• Type: Analog servo motor.
• Operating Voltage: Typically operates within a voltage range of 4.8V to 7.2V, although specific models may vary.
• Torque: Offers a high torque output, often in the range of 9.4 to 11 kg/cm (kilograms per centimeter), depending on the specific model.
• Rotation Range: Typically provides a rotational range of 180 degrees (90 degrees in each direction from the center position).
• Control Signal: Controlled using a pulse-width modulation (PWM) signal, with a typical signal frequency of 50Hz.
• Connector: Equipped with a standard 3-pin connector for easy interfacing with control boards and microcontrollers.
• Gear Material: Often has metal gears for durability and robust performance.
• Applications: Commonly used in robotics, RC (remote-controlled) vehicles, model airplanes, camera gimbals, and other applications requiring precise and controlled rotational movement.
• Mounting: Designed for easy mounting with standard servo brackets and hardware.
