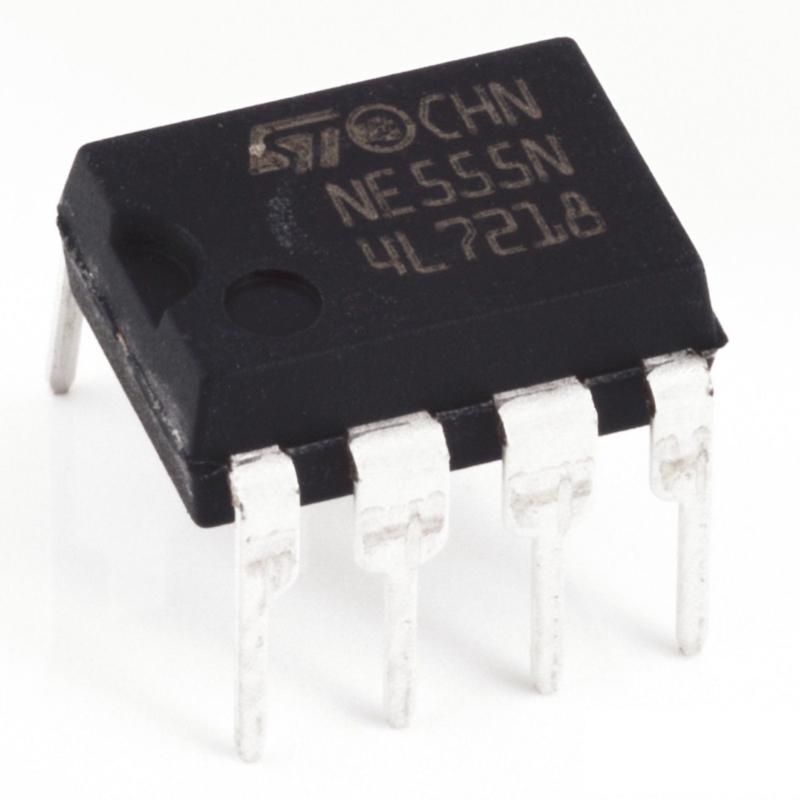

NE555-IC

The NE555 Timer IC, often referred to simply as the 555 Timer, is a versatile and widely used integrated circuit designed to generate precise time delays, pulse waveforms, and oscillations. It is an essential component for timing and control applications in electronics. The NE555 Timer IC is widely used in applications such as pulse generation, timer circuits, waveform generation, and precision timing control. Its versatility and ease of use make it a fundamental component in many electronic projects and circuits.

Specifications:

• Operating Mode: Configurable as a monostable (one-shot), astable (oscillator), or bistable (flip-flop) multivibrator, providing flexibility for a wide range of timing functions.
• Supply Voltage: Typically operates from a single power supply voltage ranging from 4.5 to 15 volts (V), although specific models may vary.
• Timing Capacitor: An external timing capacitor (C) and resistor (R) are typically used to set the timing interval for the 555 Timer.
• Output Modes: The NE555 can have either a push-pull or open-collector output, depending on the configuration.
• Frequency Range: Depending on the mode of operation and external components, the NE555 can generate frequencies from a few Hz to several MHz.
• Package Type: Available in various through-hole and surface-mount packages.
