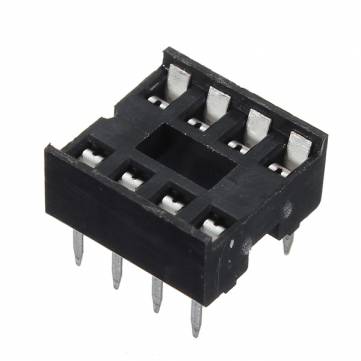

IC Socket 8-Pin

An 8-Pin IC Socket is an electronic component that provides a socketed connection for integrated circuits (ICs) with 8 pins. It allows for the easy insertion and removal of ICs without soldering, making it convenient for testing, replacement, and circuit development. 8-Pin IC sockets are a valuable component in electronics, allowing for the interchangeability of ICs and the protection of sensitive ICs during experimentation and development. They are particularly useful when working with microcontrollers, operational amplifiers, and various other ICs with 8 pins.

Specifications:

• Number of Pins: Provides a socket for ICs with 8 pins.
• Pin Configuration: The pins in the socket are arranged to match the pin configuration of standard 8-pin ICs.
• Material: Typically made of plastic with metal contacts to hold the IC securely in place.
• Contact Material: The contacts inside the socket are usually made of a durable metal, such as tin or gold-plated contacts for good electrical conductivity.
• Mounting: Available in through-hole and surface-mount (SMD) variants for PCB (Printed Circuit Board) mounting.
• Contact Type: Can be available in both machined (precision) and stamped (economical) contact types.
• Applications: Commonly used in electronic circuits, prototyping, and testing to facilitate the easy removal and replacement of ICs.
